P4 HD Indoor LED Display
Features
1. Or Rishon Digital P4 indoor LED display is highly efficient, saving energy and environmentally friendly.
2. It offers high brightness, even screen uniformity.
3. The indoor LED display provides wide viewing angle: extended wide viewing angle of 160° both horizontally and vertically.
4. Due to its lightweight design, the LED display easy to assemble and move.
5. Faithful reproduction of vivid colors by incorporating 16bit color control.
Application
Or Rishon Digital LED technology produces high-quality, high resolution images for a wide range of indoor and outdoor applications. Our display system ensures superior image quality, color reproduction and uniformity even at extreme angles. Our newest generation products are adaptable to any shape and size, including convex, concave and curved screen configurations. With advanced image processing, our LED displays are extremely stable and can accept a wide range of analog, digital, SD and HD inputs.
Technical Specifications

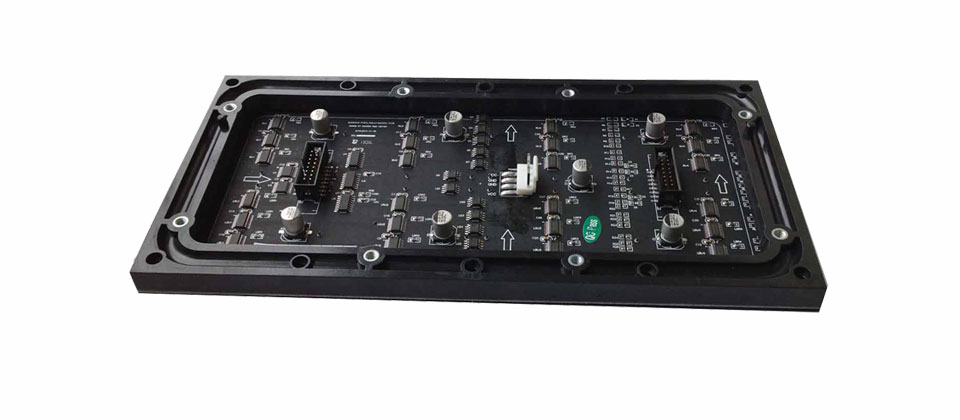

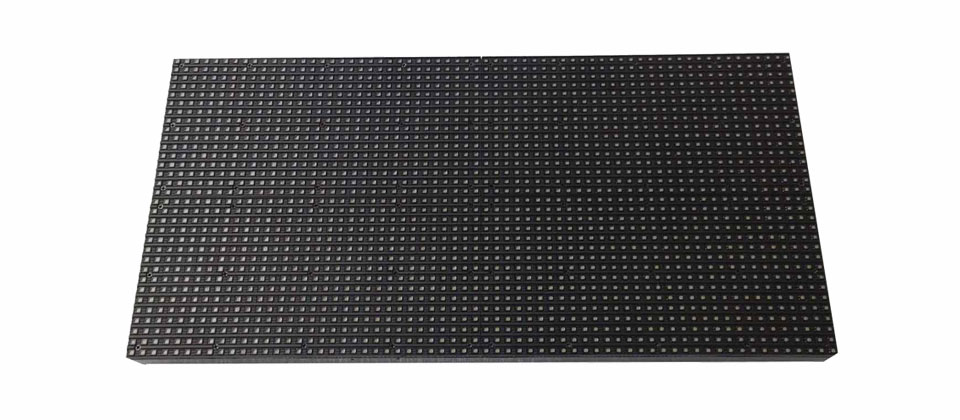

P4 Indoor LED Module
Item | Unit | Parameters | Item | Unit | Parameters |
Pixel pitch | mm | 4 | Cabinet Weight | kg/m2 | 35 |
Pixel density | dots/m2 | 62500 | Brightness | cd/m2 | ≥ 2500 |
Pixel configuration | SMD 2020 | 1R1G1B | Viewing angle (H/V) | Deg. | horizontal ≥ 140° vertical ≥ 140° |
Module resolution | dot | 64 × 32 | Module size | mm | 256 × 128 |
Power consumption | W/m2 | Max:1200 Average:600 | Protection level | IP | 43 |
Best viewing distance | m | 3-50 | LED life | Hours | >100,000 |
